Boards in LKFT

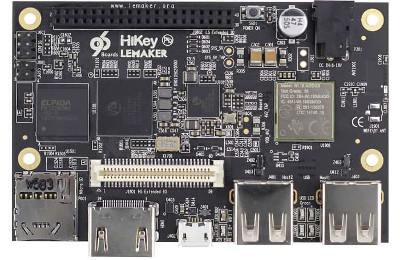

HiKey

The HiKey 620 was the first board to be certified 96Boards Consumer Edition compatible, 1GB and 2GB variants are available from LeMaker. The board is based around the HiSilicon Kirin 620 SoC and also delivers high performance 3D graphics support, Wi-Fi, and Bluetooth connectivity, all packed into a board the size of a credit card.

Specs

• CPU: ARM® CortexTM-A53 Octa-core 64-bit up to 1.2GHz (Arm v8 instruction set)
• RAM: 2GB LPDDR3 SDRAM @ 800MHz
• Storage: 8GB eMMC on board storage MicroSD card slot
• Ethernet Port: USB2.0 expansion
• USB: 2 x USB2.0 Host 1 x USB 2.0 OTG

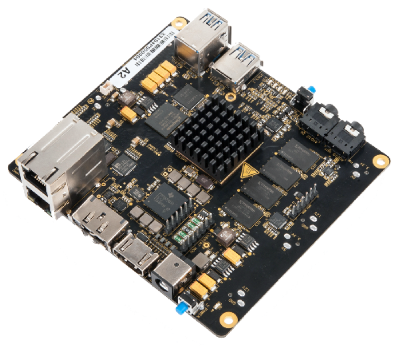

X15

BeagleBoard-X15 is the top performing, mainline Linux enabled, power-users’ dream board with a core tailored for every computing task and a highspeed interface for every connectivity need.

Specs

• CPU: TI AM5728 2×1.5-GHz ARM® Cortex-A15
• RAM: 2GB DDR3 RAM
• Storage: 4GB 8-bit eMMC on-board flash storage
• Ethernet Port: 2×Gigabit Ethernet
• USB: 3 x USB3.0 Host 1 x USB 2.0 OTG

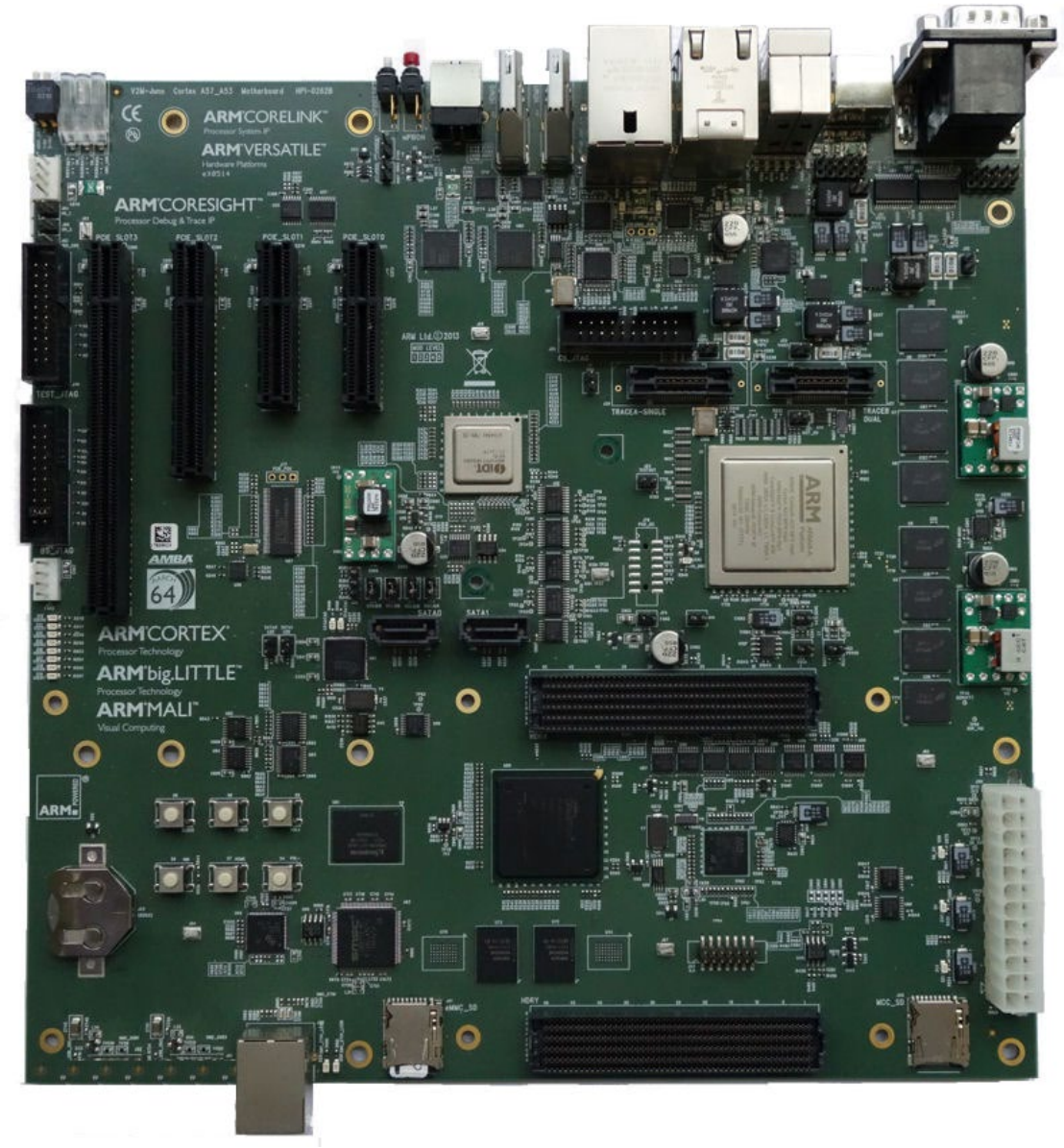

Juno r2

The Juno Arm Development Platform is a software development platform for Armv8-A which includes the Arm Versatile Express Juno development board and an Armv8-A reference software port available through Linaro.

Specs

• CPU: Cortex® A72 and A53 MPCore™ for PCIExpress development with ARMv8-A - RAM: 8GB 1600MHz DDR - Storage: SATA - Ethernet Port: 1×10/100 Ethernet - USB: 4 x USB2.0 Host

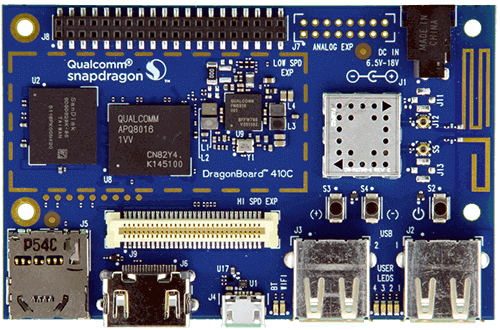

DragonBoard™ 410c

The DragonBoard 410c, a product of Arrow Electronics, is the development board based on the mid-tier Qualcomm® Snapdragon™ 410E processor. It features advanced processing power, Wi-Fi, Bluetooth connectivity, and GPS, all packed into a board the size of a credit card.

Specs

• CPU: ARM Cortex-A53 Quad-core up to 1.2 GHz per core
• RAM: 1GB LPDDR3 SDRAM @ 533MHz
• Storage: 8GB eMMC 4.51 on board storage and MicroSD card slot
• Ethernet Port: USB2.0 expansion
• USB: 2 x USB 2.0 Host 1 x USB 2.0 OTG

SynQuacer™ Developerbox

SynQuacer™ E-Series is a software development environment compliant with Linaro’s 96Boards open hardware specification. This has been built jointly by Socionext Inc., Linaro and GIGABYTE. It contains one “SC2A11”. “SC2A11” is a multi-core chip with 24 cores of ARM® Cortex-A53. This system is used to host 2GB and 1GB QEMU/KVM hosts running ARM on ARM.

QEMU

All tests are also run under KVM using QEMU on all supported architectures. QEMU is nice for troubleshooting without needing local hardware, as well as providing another data set to help determine when problems are board specific or architecture specific..

x86_64 Server

Tests are also run in both 64bit and 32bit mode on a typical x86_64 server for the purposes of providing a baseline for comparison.
